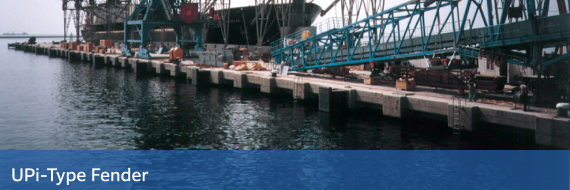

Upi-TYPE

Merits of UPi-TYPE FENDER

Higher Performance

With the frontal panel of unique shape, UPi(Ultra Pi) Type fender can be compressed until 60.0% of original height as design deflection and 62.5% of that as maximum deflection. As the result of prolonged rated deflection, the capability of energy absorption is much improved.

12.7% more energy absorption than HPi type of the same dimensional fender and the same reaction load.
22.4% more energy absorotion than Pi type of the same dimensional fender and the same reaction load.

High variety of rubber leg

Energy Absorption and Reaction Load figures are proportional to the length of rubber leg.

STANDARD SIZE and PERFORMANCE
Size Length(m)
UPi-600H 1.0 1.5 2.0 2.5 3.0
UPi-800H 1.0 1.5 2.0 2.5 3.0
UPi-1000H 1.0 1.5 2.0 2.5 3.0
UPi-1150H 1.0 1.5 2.0 2.5 3.0
UPi-1250H 1.0 1.5 2.0 2.5 3.0
UPi-1400H 1.0 1.5 2.0 2.5 3.0
UPi-1700H 1.0 1.5 2.0 2.5 3.0
UPi-2000H 1.0 1.5 2.0 2.5 3.0
UPi-2500H 1.0 1.5 2.0 2.5 3.0
Rubber compound
Rubber Compound CP0 CP1 CP2 CP3
Performance Index 1.40 1.20 1.00 0.80
Hardness Hard <---------------------------> Soft

* Special rubber compound can be available developing on design conditions. The range of rubber compound is CP4-CPX.
* The data are subject to change without notice.

Portfolio of UPi-TYPE FENDER
